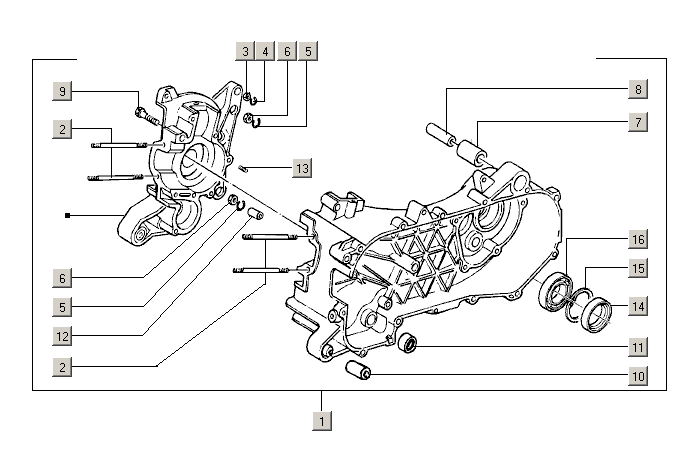

Carter Piaggio NRG 50 IE 2T Power Purejet H2O E2 2004-2005 (EMEA)
- 1. No more available
- 2. Cylinder tape end
- 3. Moer M6x1 SW10-6
- 4. Borgring
- 5. Borgring
- 6. Moer m 8 x 1.25 SW13-8
- 7. Motor suspension rubber 23x12-27 M04-M11-C27
- 8. Vulbus 16x10-33 (Motor suspension) M04
- 9. SCrew W/ Flange
- 10. Motor suspension rubber M041*110968 >> -C26 -C28
- 11. Turning Ø8x16x10 Water pump Piaggio/ Gilera 50 LC
- 12. Bronze bus Ø8xø12x8 t.b.v. Starter
- 13. Reference plug Ø9.3xø6.5x14.5mm
- 14. Turning 47x30-6 AS C01<>C25-C28
- 15. Circlip for securities 47mm
- 16. Lower 6204/C4 RSR AS C80-NSL turned out
