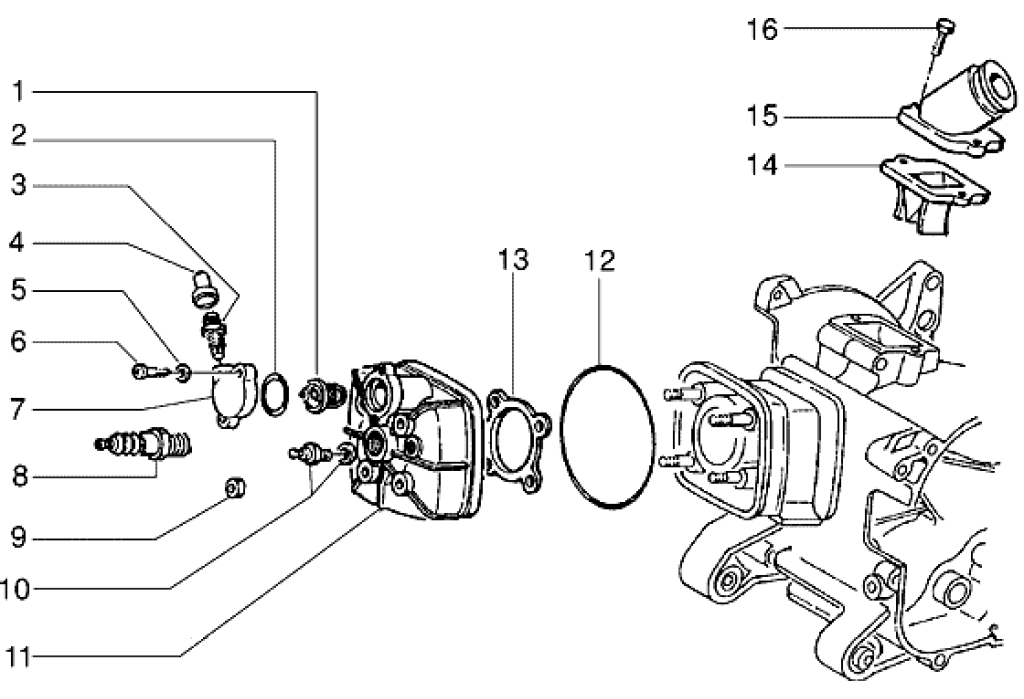

Cylinder head -Piaggio nrg 50 2t MC2 1997 (EMEA)
- 1. Thermostat Piaggio Scooters H2O 2T M05-> M08-C14
- 2. Thermostathohuis's packaging NSP-Exs
- 3. Venting nipple 5/16
- 4. Venting nipple hood NSP-AF-M27-M34
- 5. Supplement Ø5.3xø10x0.5
- 6. No more available
- 7. No more available
- 8. Bougie Champion/Piaggio P2M (N2C) Standard (Lange Schacht)
- 9. Cylinder head nut M6 NSL-SSL
- 10. Temperature sensor Piaggio C27 2004/19->
- 11. Cylinder head with i.p.
- 12. O-ring for cylinder head C04-NSP
- 13. Cylinder head gasket Quartz NSP-C27-C36
- 14. Membram metal slats
- 15. No more available
- 16. Flensbout M6x22
- 17. Membraaming packaging SSL-SAL-25km (NL)
- 18. No more available
- 19. Cylinder cooling hood Black Piaggio 50 Air 2T 1998->
- 20. Flensmoer m 6 x 1 SW10-7
- 21. Cylinder head NSL-TEC-C01> C14-C15-C421
- 22. Veerring
- 23. Screw
- 24. Cylinder head gasket FCS-Sal-25 (NL)
