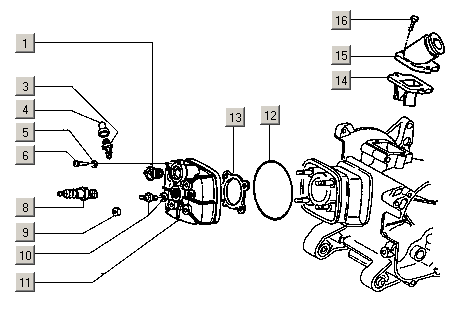

Cylinder head -Piaggio nrg 50 2T MC2 Extreme E1 1999-2000 (EMEA)
- 1. Thermostat Piaggio Scooters H2O 2T M05-> M08-C14
- 3. Venting nipple 5/16
- 4. Venting nipple hood NSP-AF-M27-M34
- 5. Supporting m 4 x 8 x 0.6
- 6. Cross -head bolt M4x10
- 8. Bougie Champion/Piaggio P2M (N2C) Standard (Lange Schacht)
- 8. Bougie Champion/Piaggio RN1C Signed up (long shaft)
- 9. Flensmoer m 6 x 1 SW10-7
- 10. Temperature sensor Piaggio C27 2004/19->
- 11. Cylinder head with i.p.
- 12. O-ring for Cylinderkop C14-C18-C22-C27
- 13. Cylinder head gasket Quartz NSP-C27-C36
- 14. Membram metal slats
- 15. Brussels piece Piaggio Typhoon 50 2T E2-E4 2001-2020
- 16. Flensbout M6x22
